Truss: King Post

PRODUCT: 90700100

Truss: King Post

REQUEST A QUOTE

Select a size to get started…

*Span and pitch on next screen.

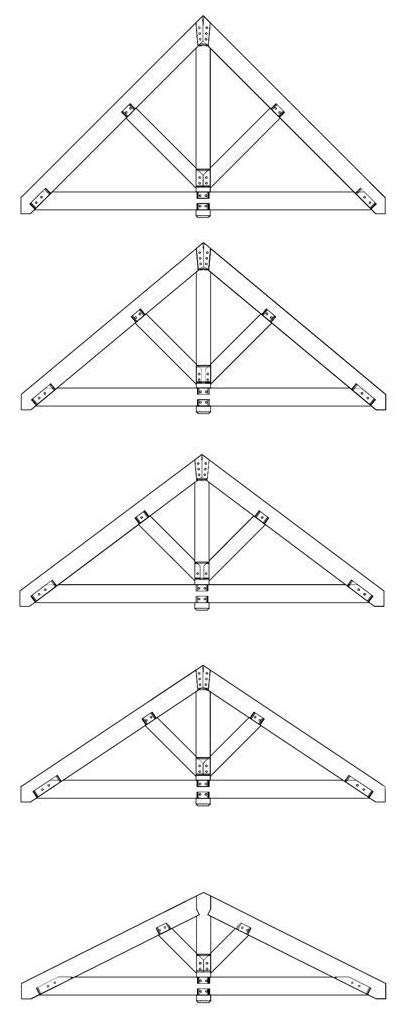

The King Post Truss is a classic heavy timber truss that can be used for exterior, interior, structural or decorative purposes. Wood-on-wood mortise and tenon joinery provides a timeless aesthetic. Truss packages can be delivered either unassembled in kit form, or fully assembled (assembly charges apply).

SPECIFICATIONS:

VARIATIONS: 150

TIMBER SIZES: 3 (4x, 6x, 8x)

SPANS: 10 (8’, 10’, 12’, 14’, 16’, 18’, 20’, 22’, 24’, 26’)

PITCHES: 5 (6/12, 8/12,  9/12, 10/12, 12/12)

JOINERY: Traditional mortise & tenon

OPTIONS:

WOOD SPECIES: Douglas Fir (standard), Western Red Cedar, Alaskan Yellow Cedar, Port Orford Cedar, Cypress, Hemlock, White Fir, Reclaimed, Exotic

SURFACES: S4S (standard), resawn, wire brushed, radius-hewn, Adze-hewn, triple-texture

FINISHES: Staining or oiling available upon request

ANCHORING: Contact reseller

INSTALLATION: Products require installation by an experienced carpenter or an authorized SystemBuilt Timber reseller. Assembly, installation and pre-assembly is not included in product pricing – contact reseller for information.

ENGINEERING: SystemBuilt Timber products are not engineered to local building codes, unless specifically stated. Engineering approvals can be provided upon request at an additional charge.

PRE-ASSEMBLY: Contact reseller

PRICING:

Pricing, upgrade options and installation services are available upon request
