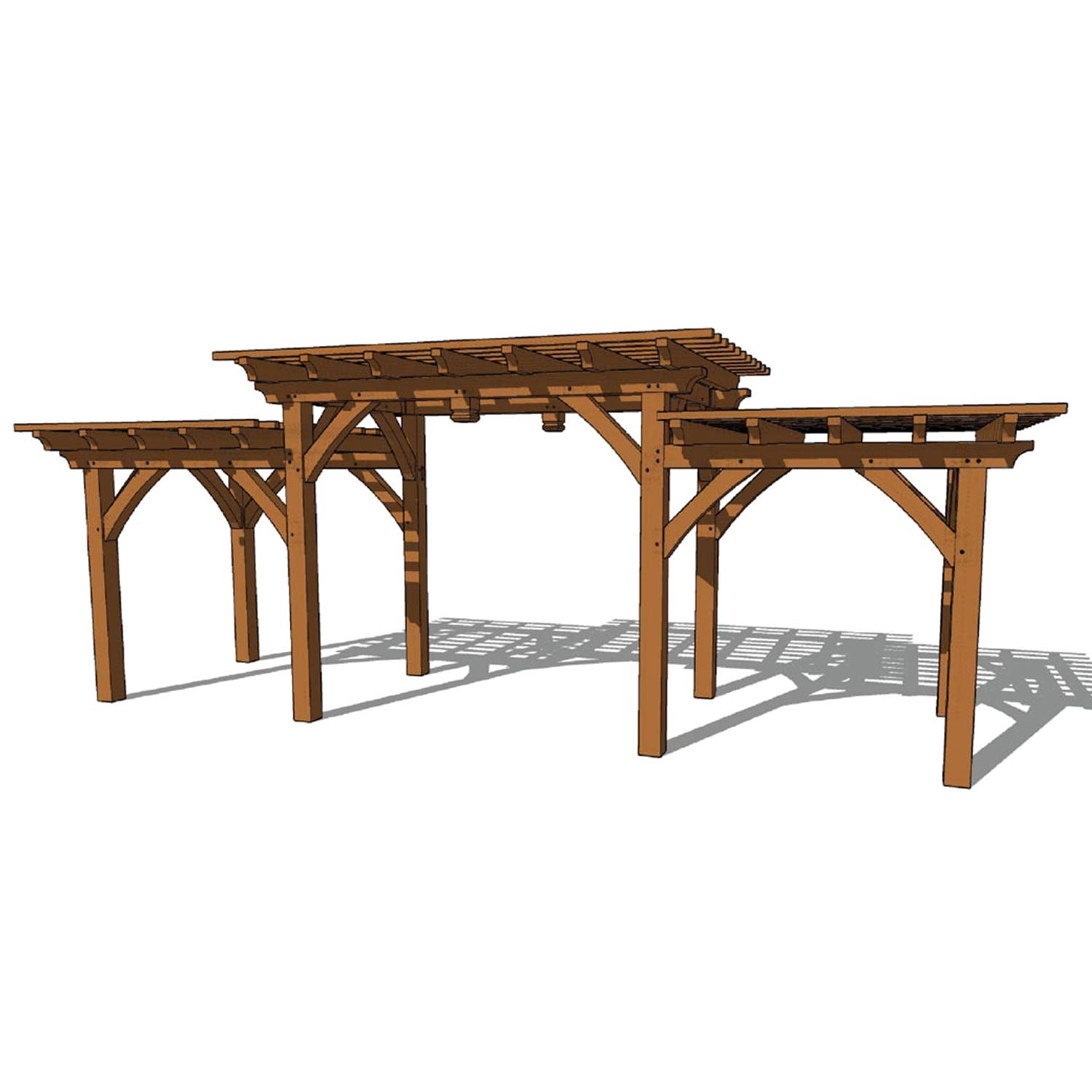

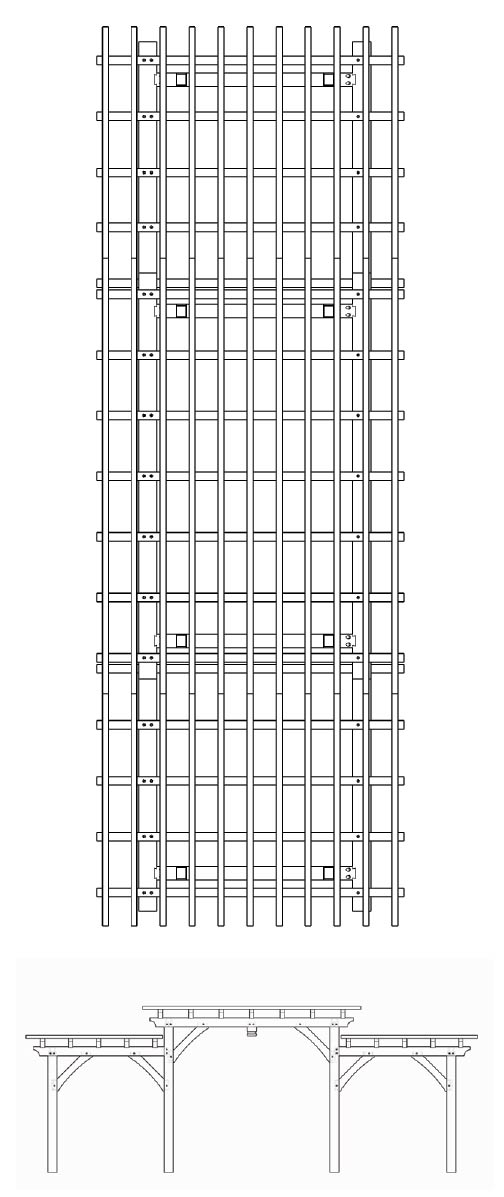

The Oriole is a high-end, three-part pergola with optional trellis system, designed to last and constructed for life. It is precision fabricated on advanced CNC machinery using the highest quality Douglas fir timbers. Wood-on-wood joinery provides a timeless aesthetic and allows for easy installation. This product is delivered in kit form with numbered parts, drawings, wood pegs and fasteners. This product requires assembly by an experienced carpenter with timber frame knowledge.
SIZES: 7 (8’x28’ through 20’x28’)
BASE FOOTPRINT SIZE: 8’x28’ through 20’x28’
OVERALL SIZE: 10’x30’ through 22’x30’
HEAD HEIGHT: 8’
OVERALL HEIGHT: 11’ 7”
ROOF OVERHANG: 1’
ROOF PITCH: none
POST SIZE: starts at 8”x8”
JOINERY: Traditional mortise & tenon
WOOD SPECIES: Douglas Fir (standard), Western Red Cedar, Alaskan Yellow Cedar, Port Orford Cedar, Cypress, Hemlock, White Fir, Reclaimed, Exotic
BRACES: Curved braces (standard), straight braces
SURFACES: S4S (standard), resawn, wire brushed, radius-hewn, Adze-hewn, triple-texture
FINISHES: Staining or oiling available upon request
ANCHORING: Contact reseller
INSTALLATION: Products require installation by an experienced carpenter or an authorized SystemBuilt Timber reseller. Assembly, installation and pre-assembly is not included in product pricing – contact reseller for information.
ENGINEERING: SystemBuilt Timber products are not engineered to local building codes, unless specifically stated. Engineering approvals can be provided upon request at an additional charge.
Pricing, upgrade options and installation services are available upon request
